MarkIII and 3.1
This kit can be used in a MarkIII and a Mark3.1 as long as you are not using a 4.6 motor.  This footbox is 1 inch wider and 1 inch deeper than the original MarkIII and Mark3.1 passenger Footbox.

This is not an extension of the current footbox.  All the footbox panels are replaced, it looks very original.  The panels are made from the same .040 6061 aluminum that Factory 5 uses, except for the Floors which are made from much stiffer .090 5052.  The kit also includes a new stiffer .090 5052 floor for the driver's side.

This kit works with all the different 302 and 351 header combinations including stock "J" pipe and 4x4's.

Coupe
This kit can be used in the Daytona Coupe with minor trimming in the door hinge area.

(click on images for a larger view)

Coupe Foot Box Pictures

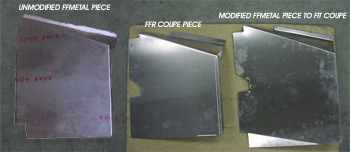

Modifications necessary to use in a Coupe


(click on images for a larger view)
